110 km/h
Wind resistance
Save 20%
Regular price
Sale price
£6,459.00
Regular price
£8,073.75
Sale
Waterproof when closed · Manual crank louvres · Made to order
Price updates as you choose size and height
Add side enclosures
Tap a side to choose an enclosure. Pick type and colour in the popup.
Limited monthly offer
Perimeter LED lighting FREE
Usually £420.00. Yours free until the end of this month
00
Days
00
Hrs
00
Min
00
Sec
Optional extras
Or from £—/mo over 12 months interest free* *Subject to status. Terms apply. Based on your current configuration.
Thank you
A member of the team will be in touch.
Save this design
Send your configuration to our team and we will call you back. No payment required.
Loading configuration…
Made to order
Built after you order · Estimated delivery in 4 to 6 weeks
- 10 year structure warranty
- UK support · statutory consumer rights apply
- Secure checkout · finance available subject to status
Turn the crank. Open the sky.
A few turns of the crank and the louvres tilt open to the sun. Turn it back and they close against the rain, with water running into the integrated gutters, down through the posts and away. Pergola Essential is our manual aluminium louvre pergola: the same solid aluminium build as Classic, with a hand crank roof and no electrician needed for the roof.
Simple by design
No motor, no remote and no wiring for the roof. A mechanical crank turns the louvres smoothly up to about 115°, so you can let the light in, angle them for shade or close them up for cover.
What you get
- A powder-coated aluminium frame with 135 × 135 mm posts, 162 × 162 mm base plates and 1.5 mm louvres. No painting or sealing.
- A manual louvre roof with a hand crank, opening up to about 115°. Waterproof when the louvres are fully closed.
- Integrated gutters that drain rainwater through the posts.
- Optional perimeter LED lighting around the frame (warm white, 3000K). Dimming is not available. Add it on this page.

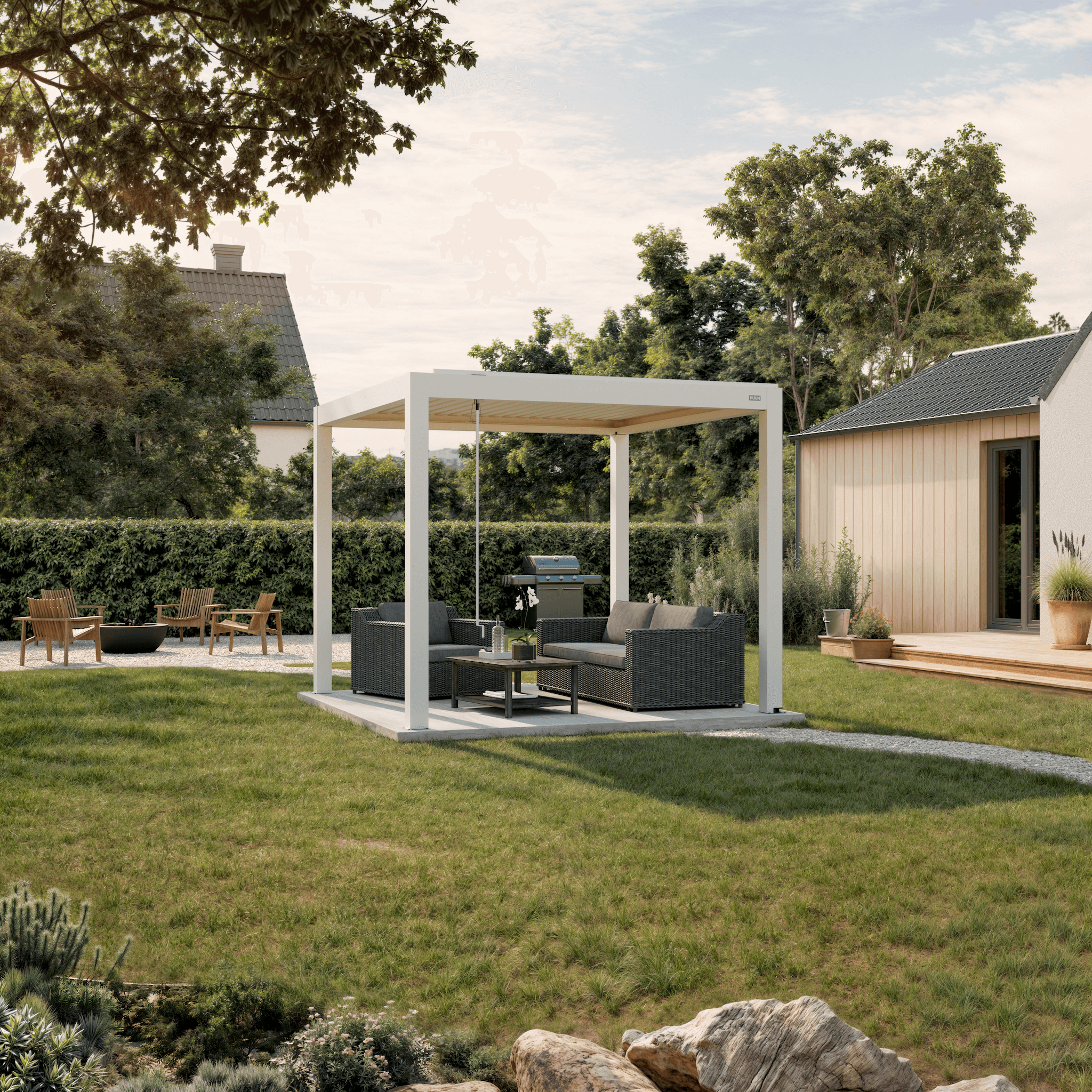

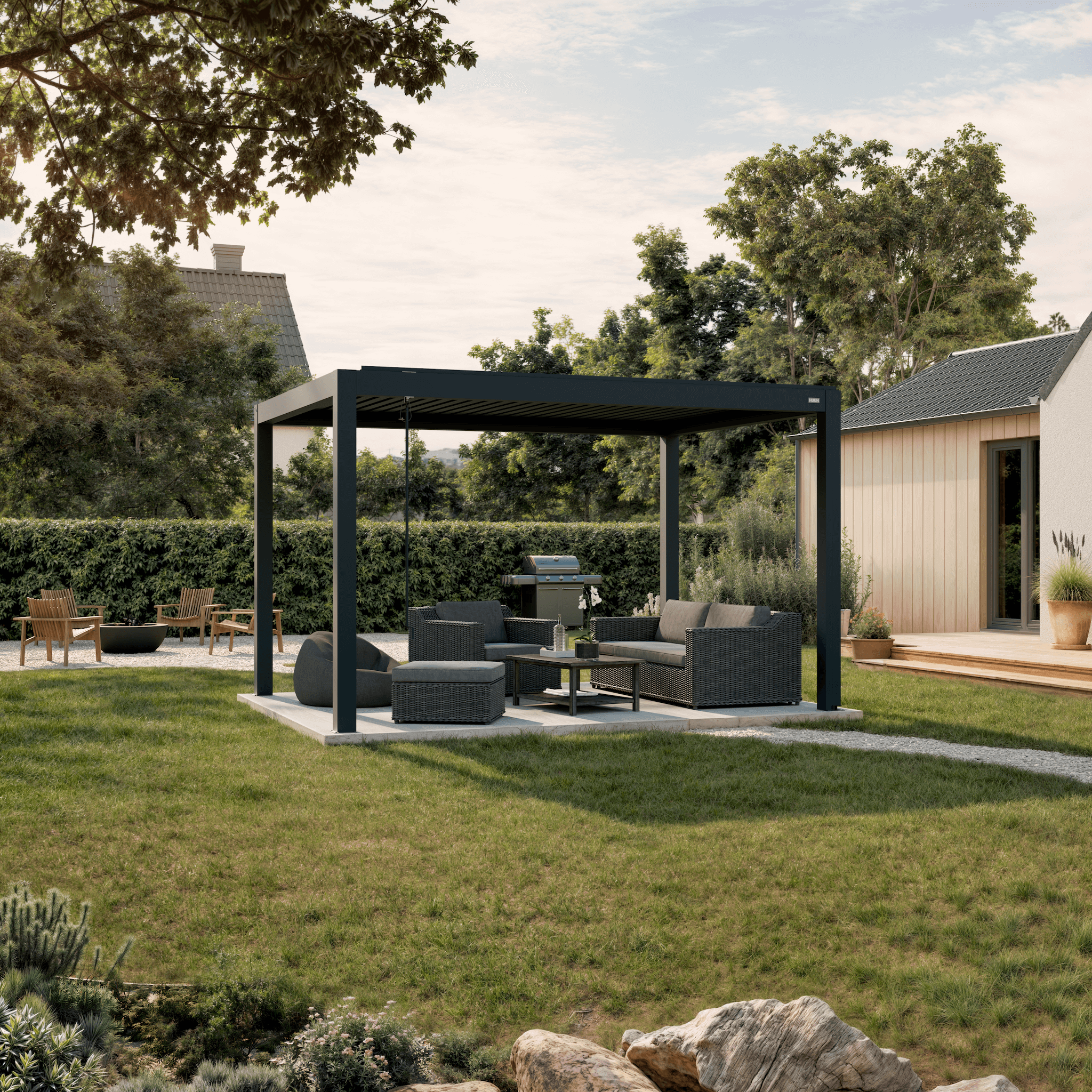

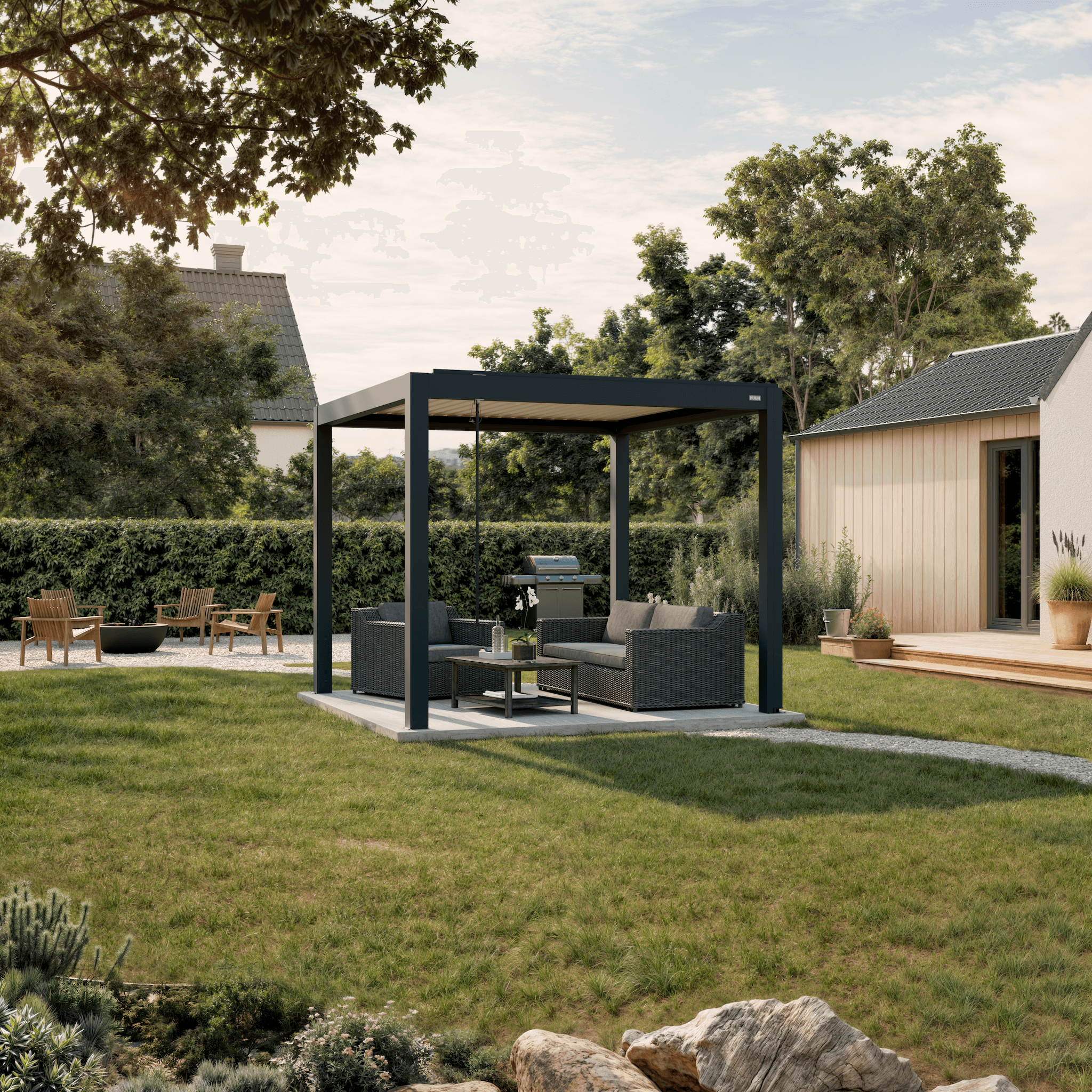

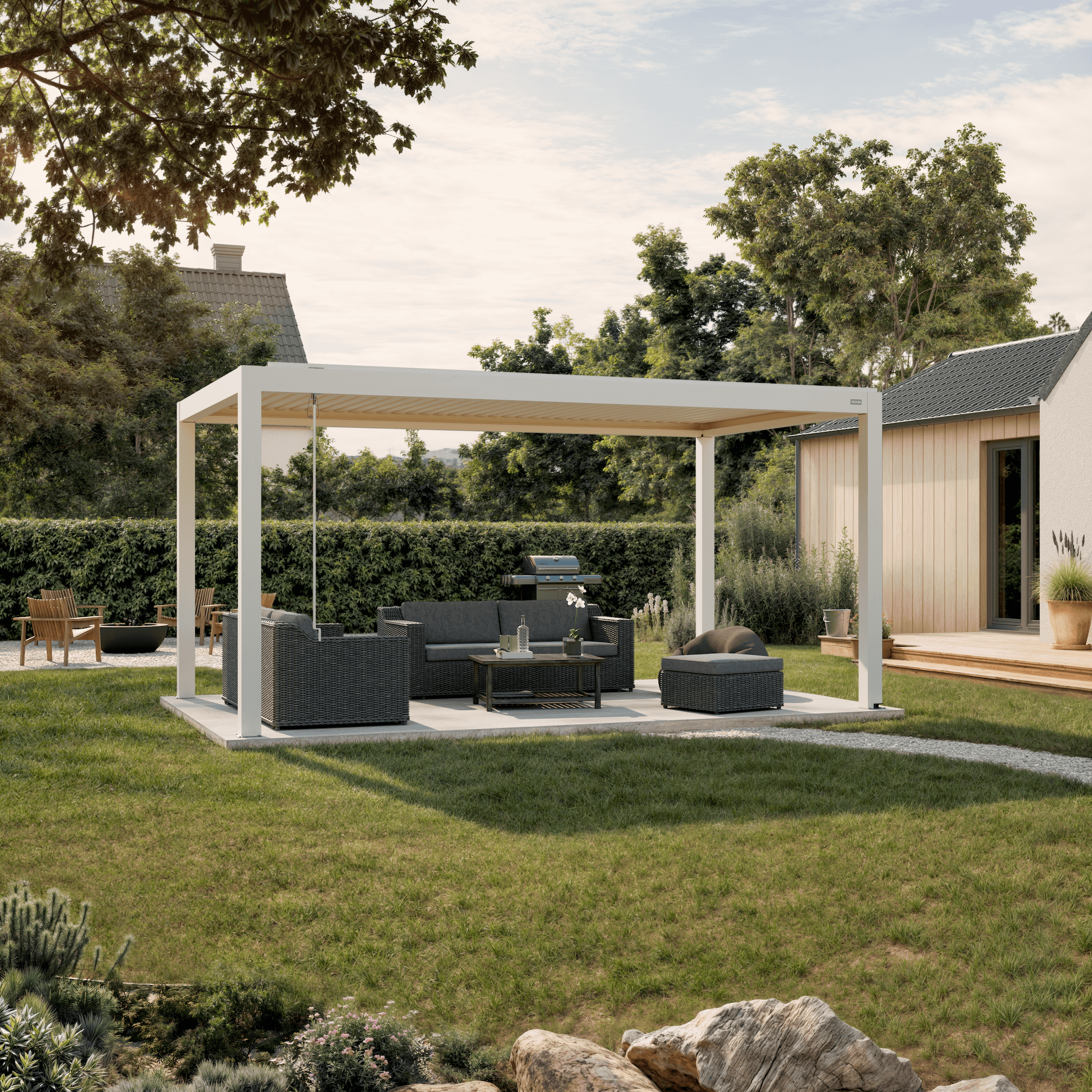

- Three sizes: 3 × 3, 3 × 4 and 3 × 5 m.
- A standard 2,350 mm height to the underside of the beam.

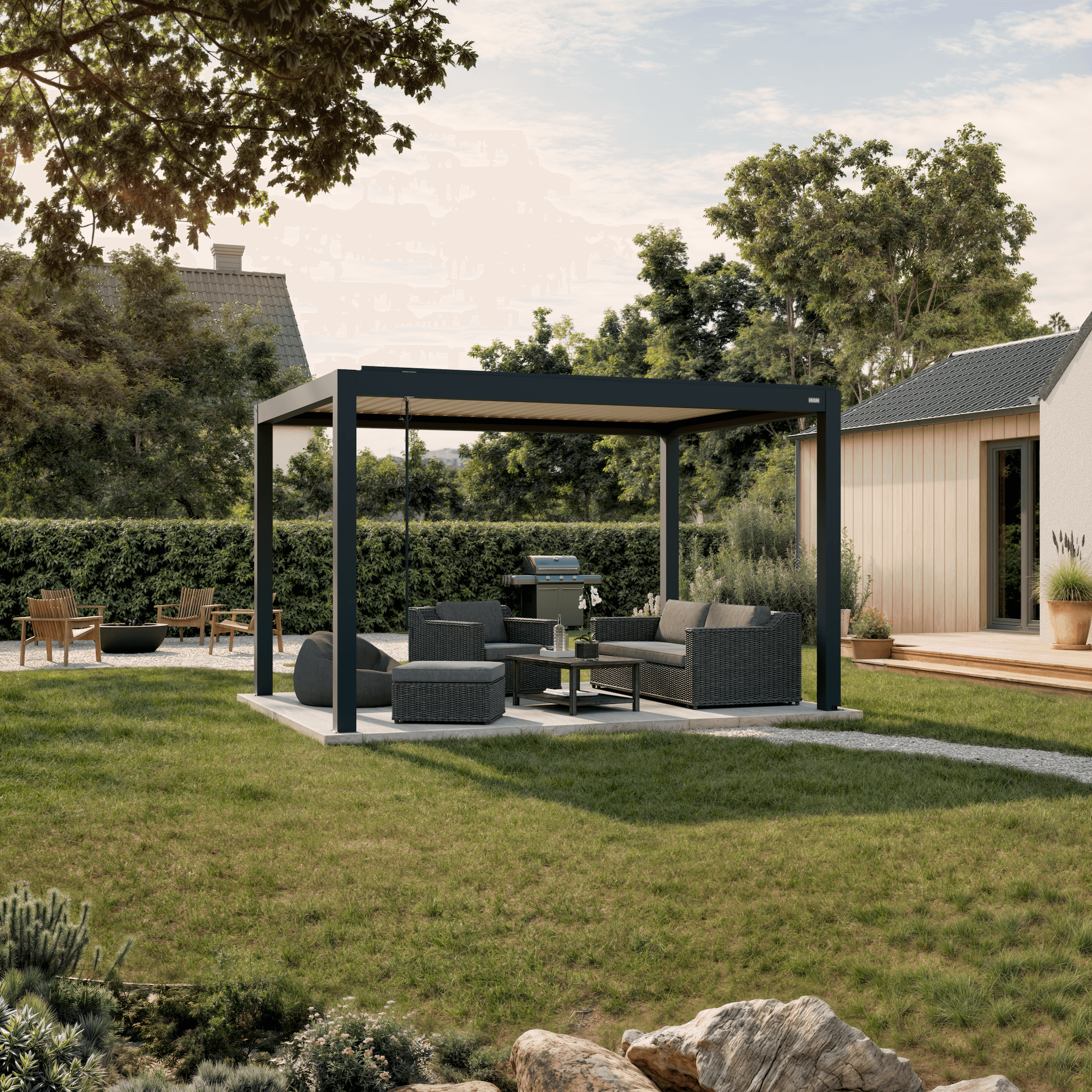

- Three finishes: anthracite (RAL 7016), white (RAL 9010), or an anthracite frame with white blades.

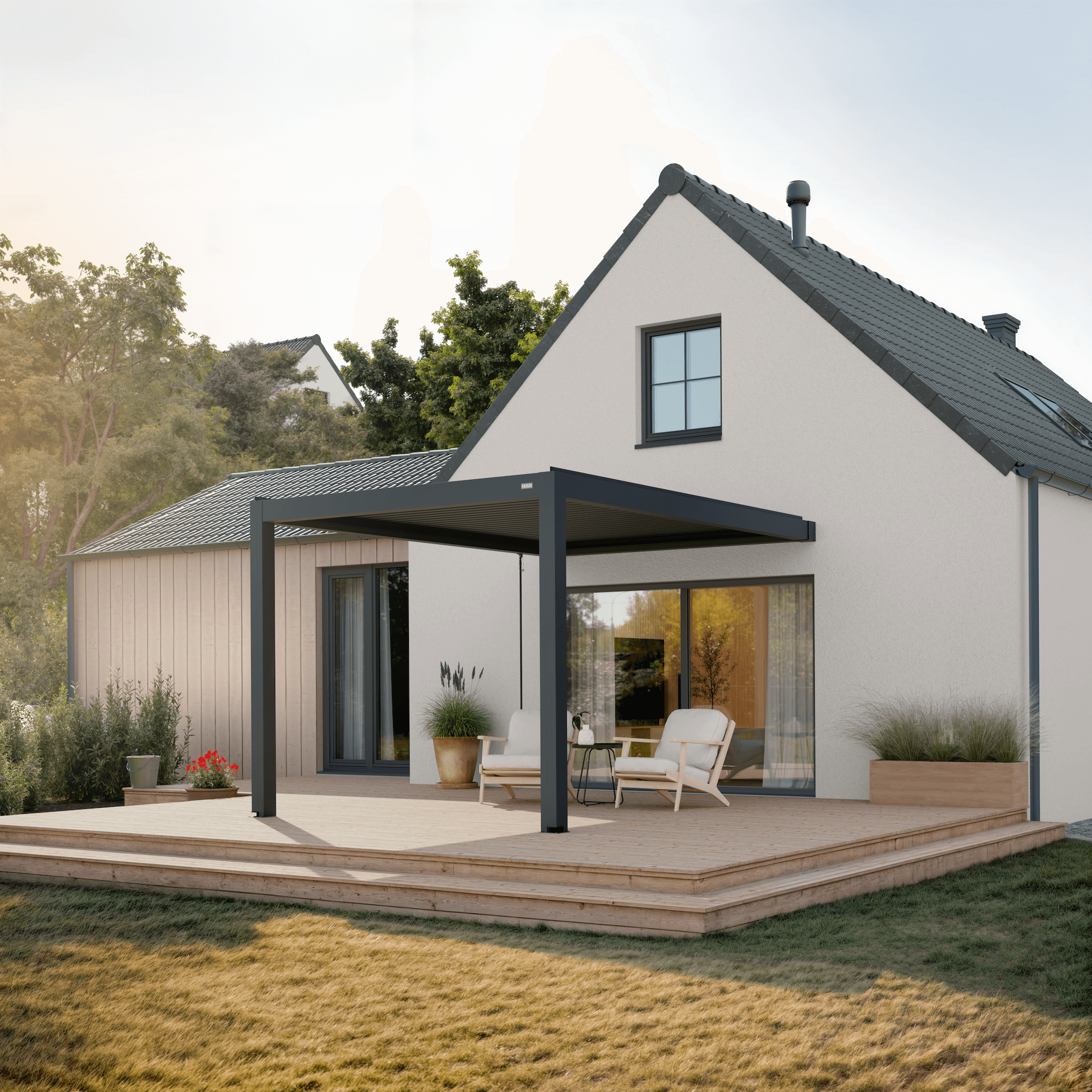

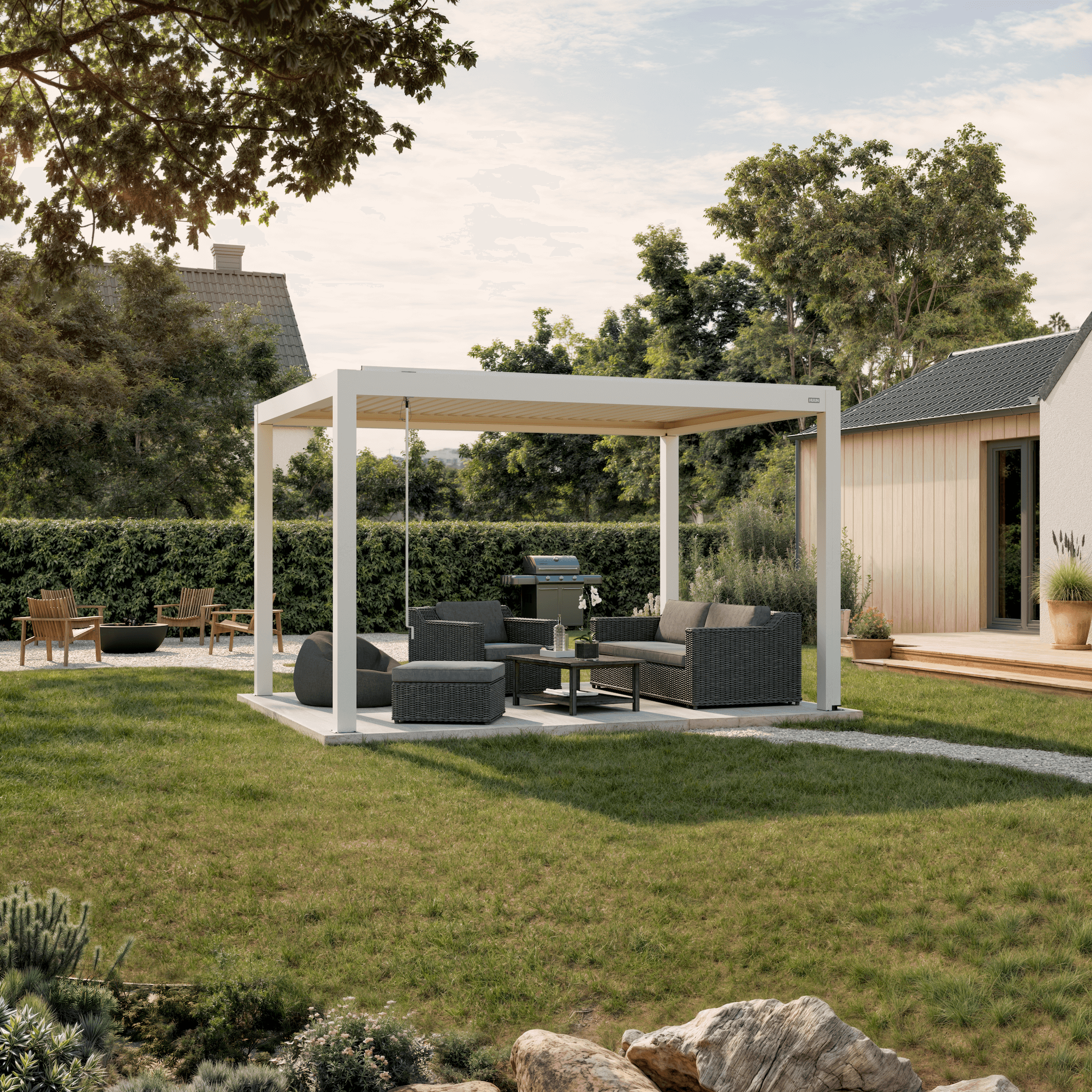

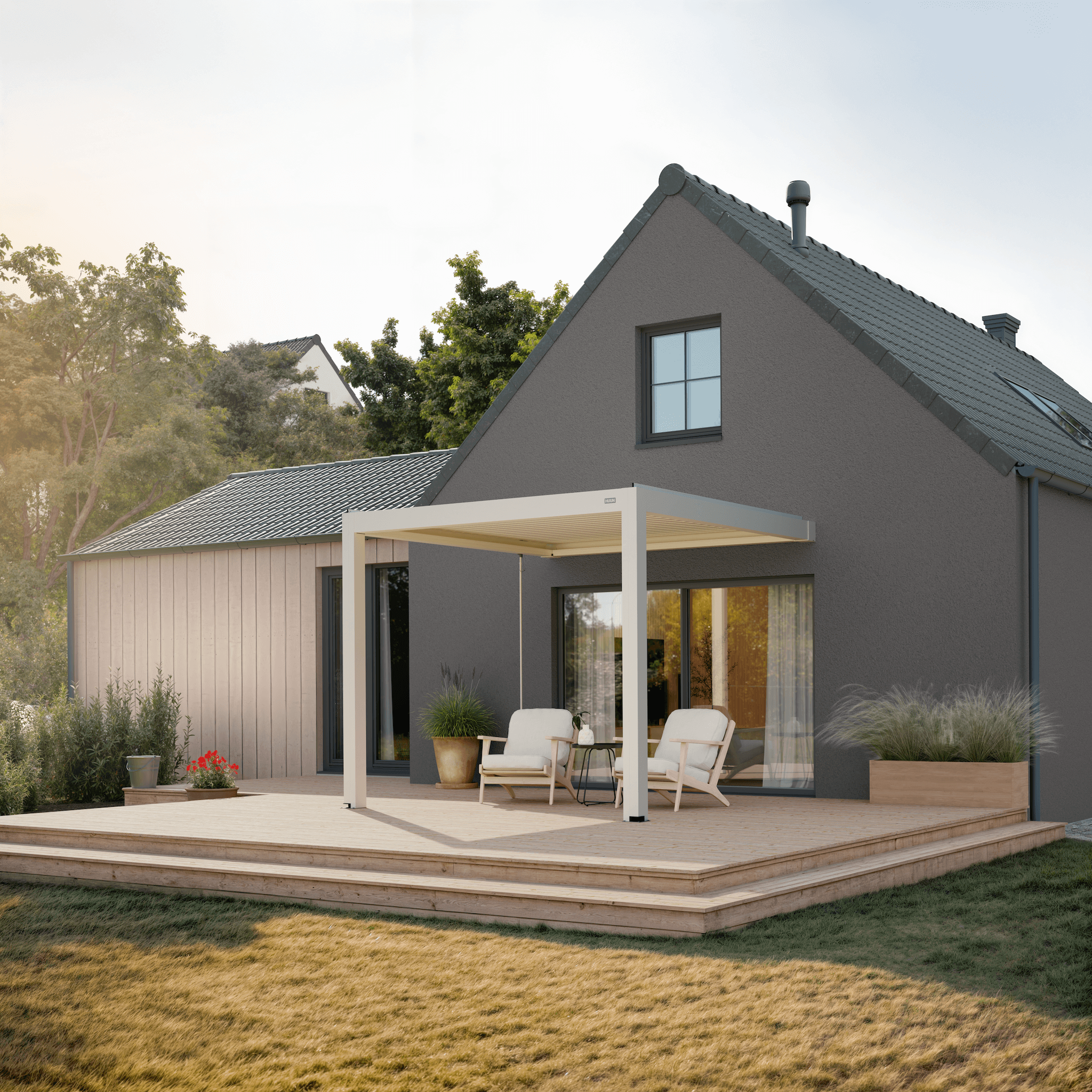

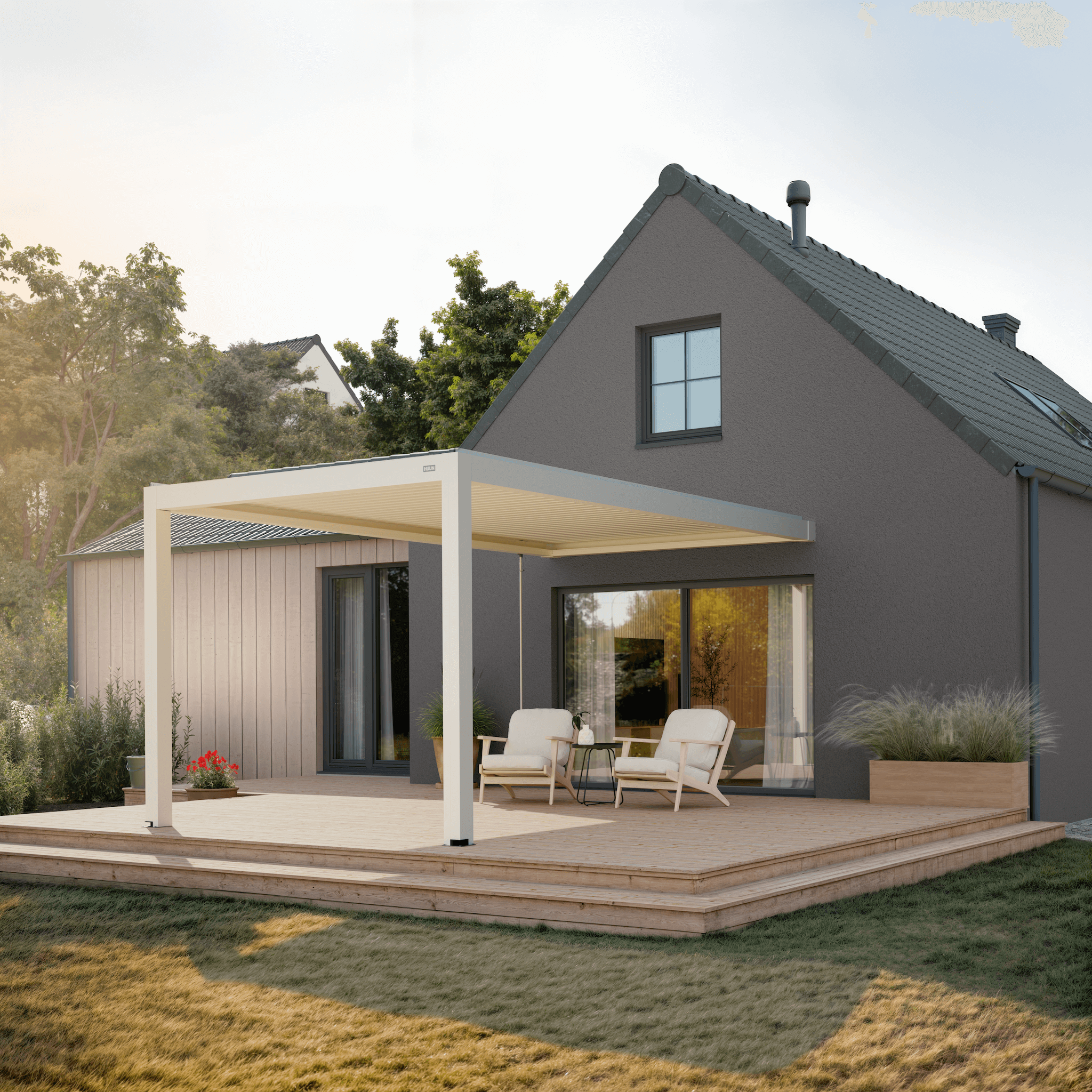

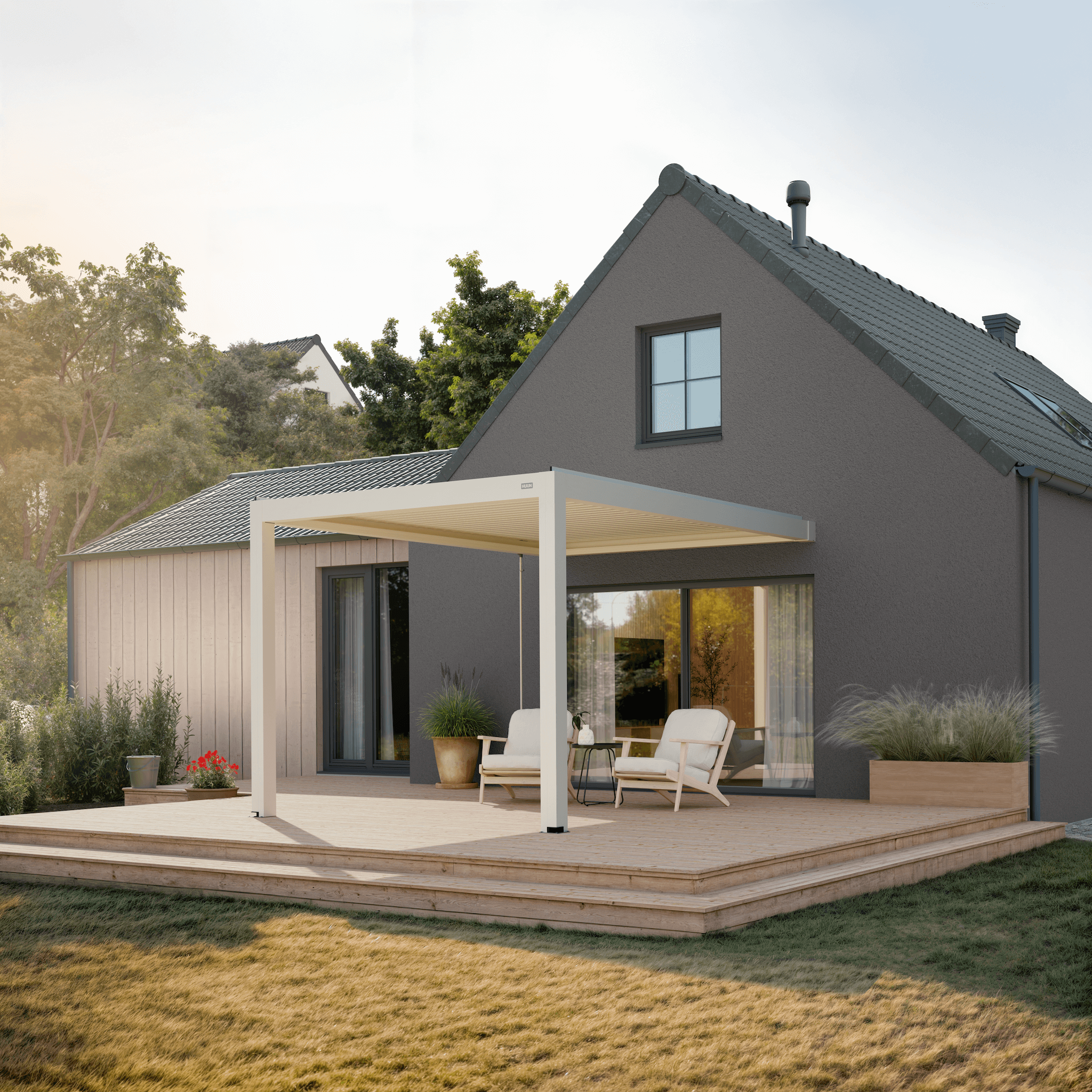

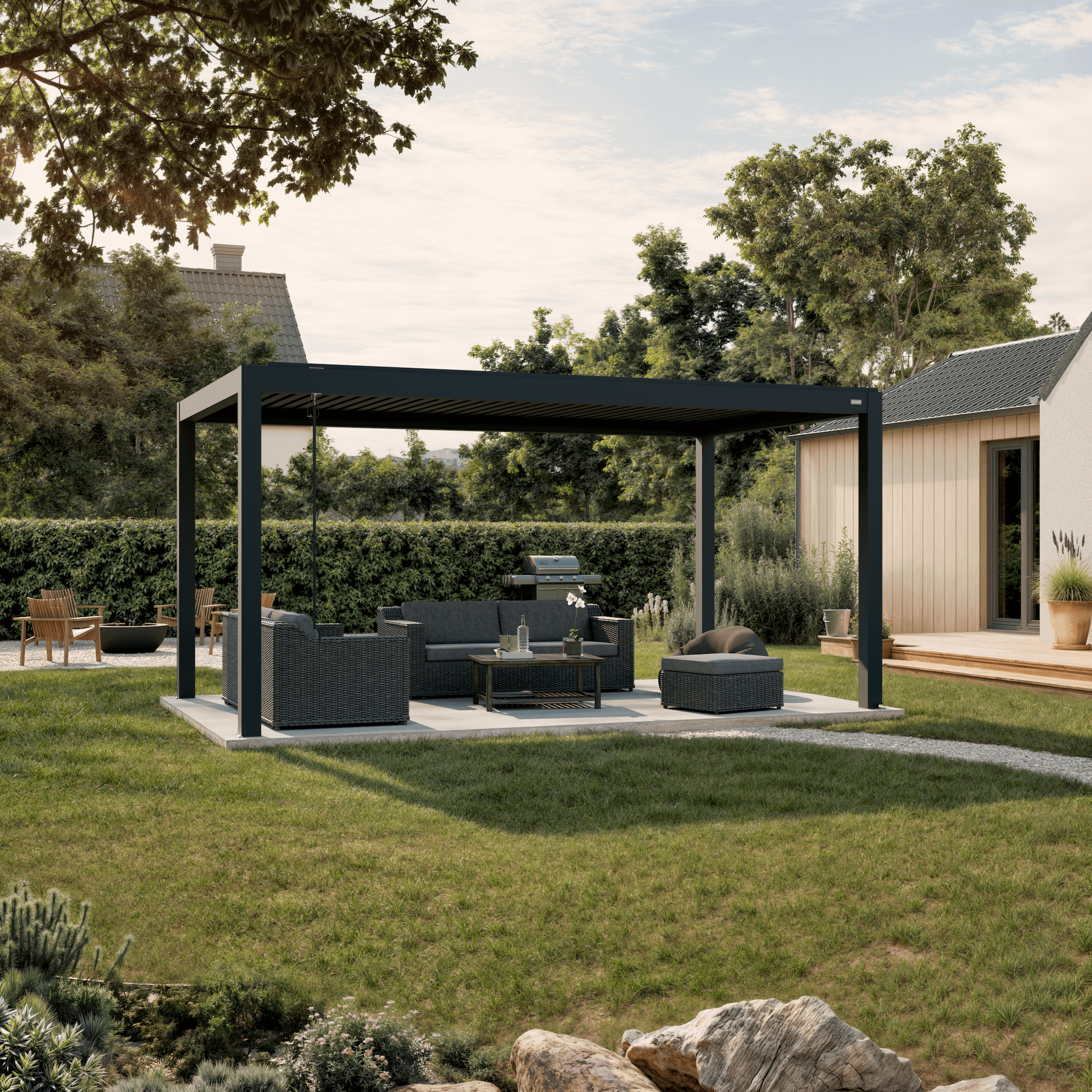

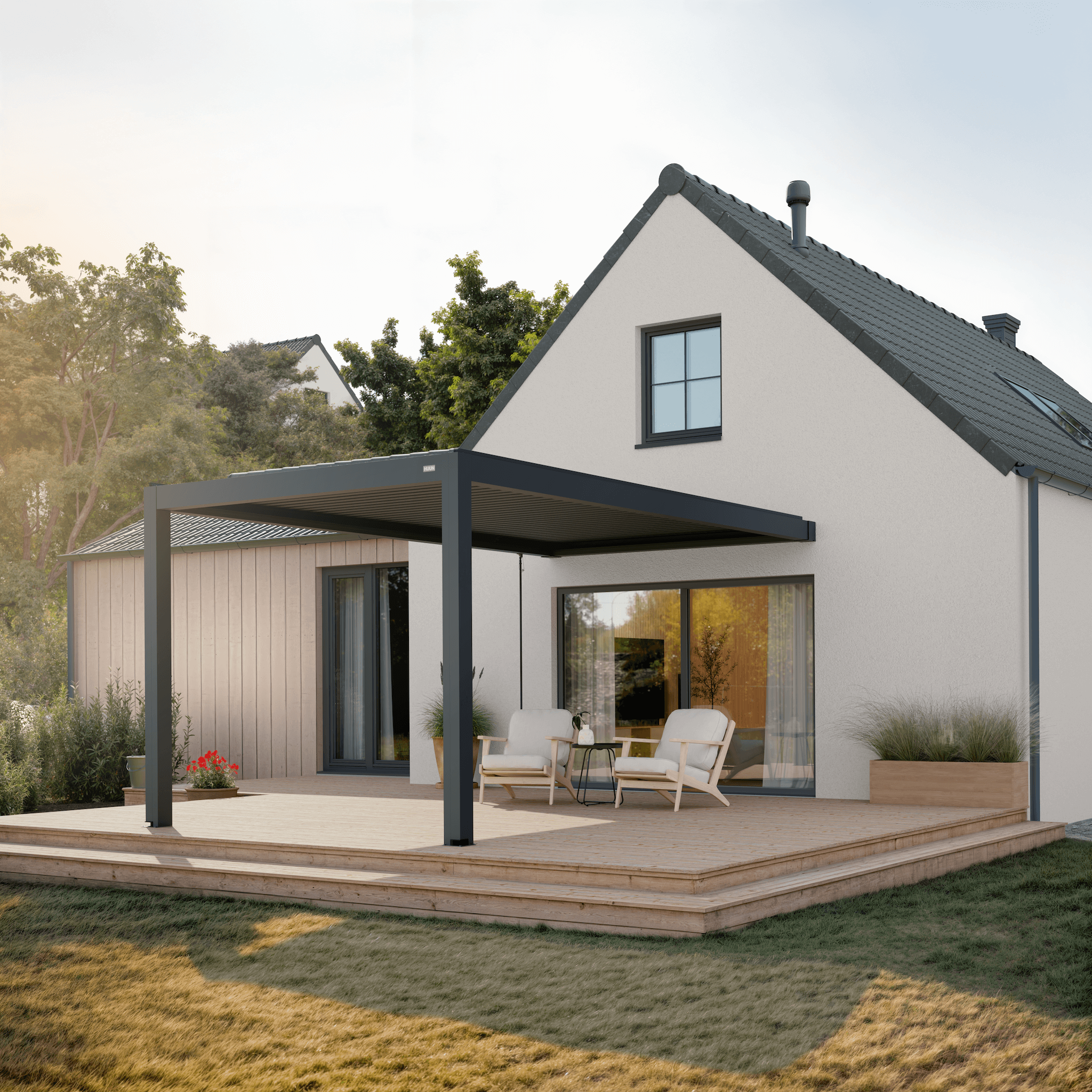

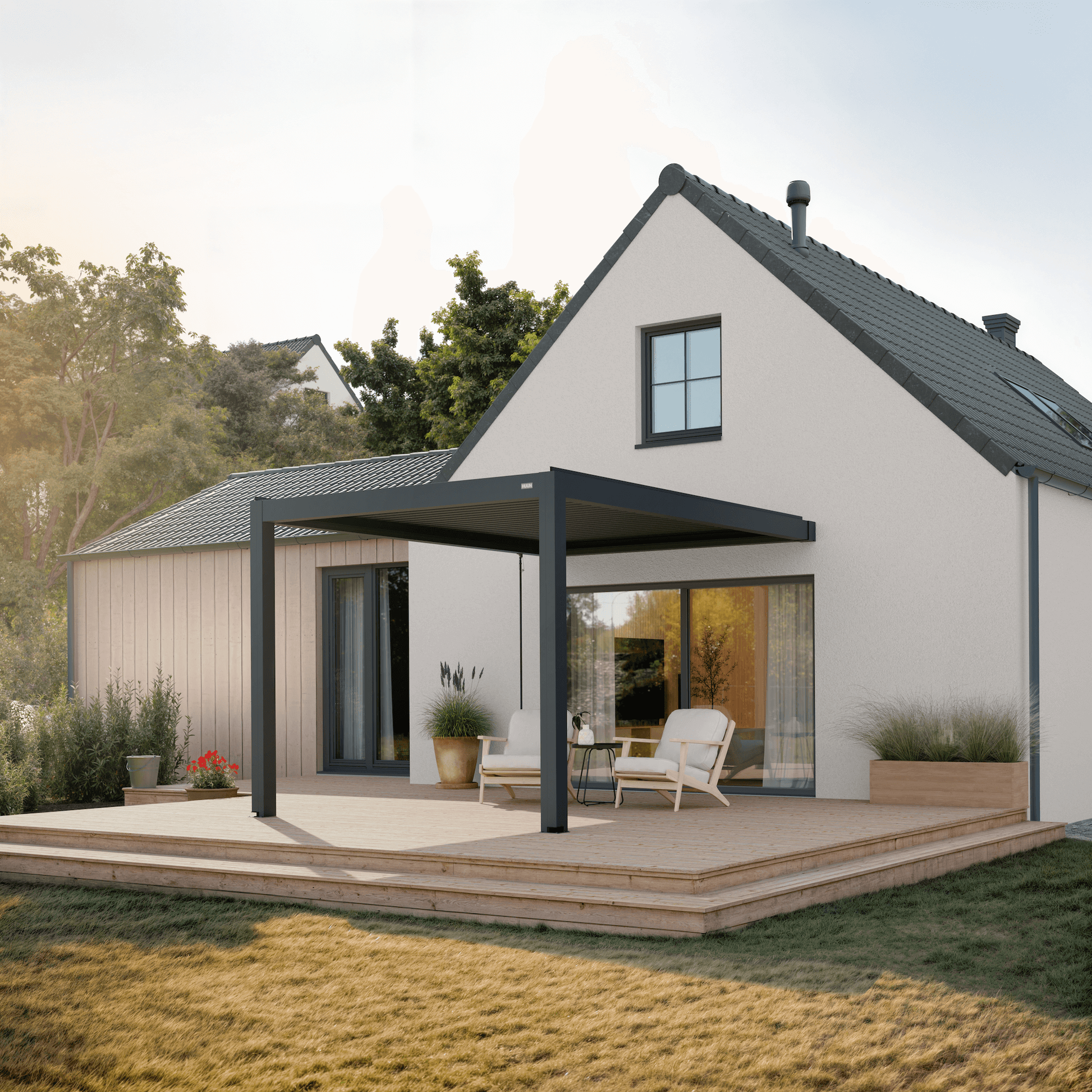

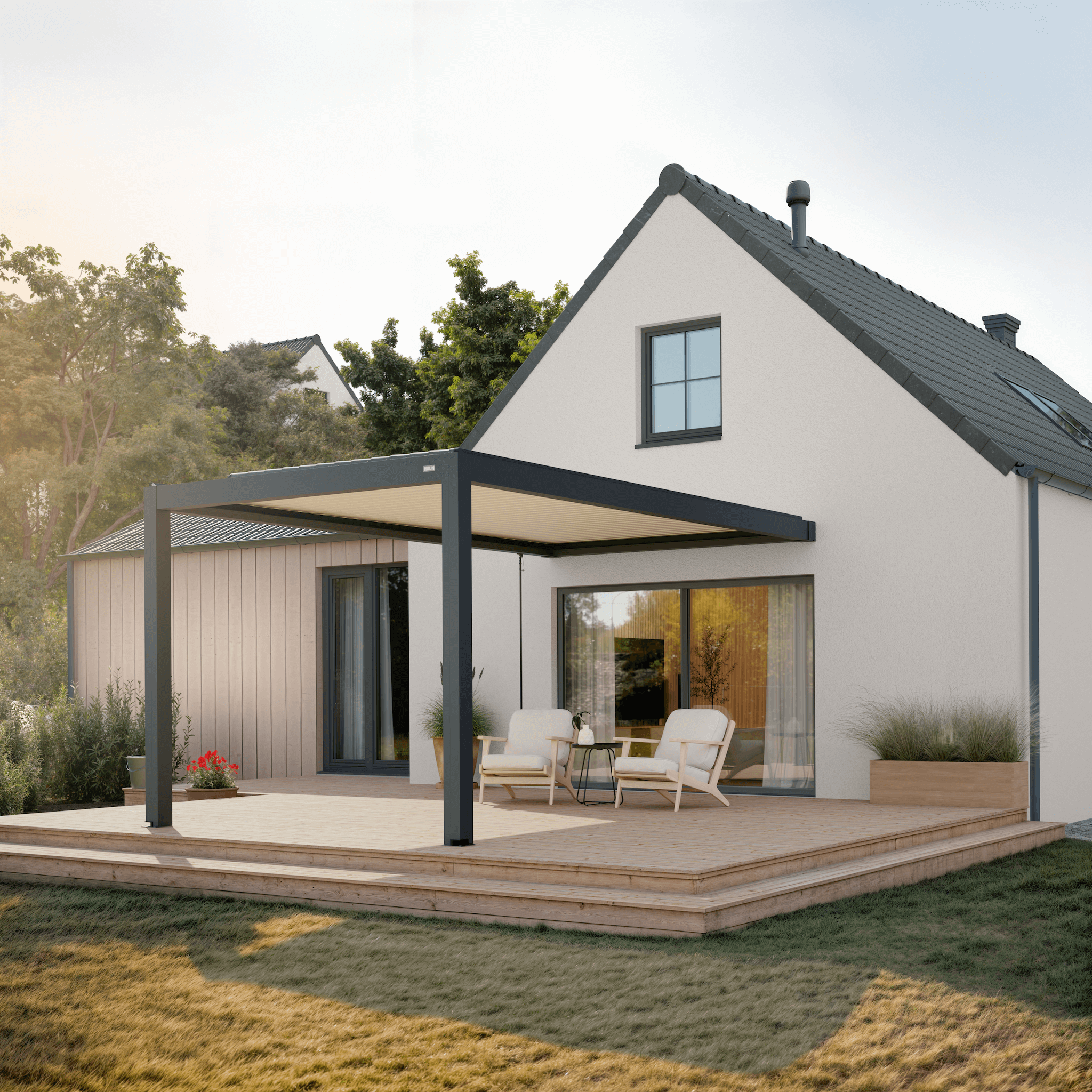

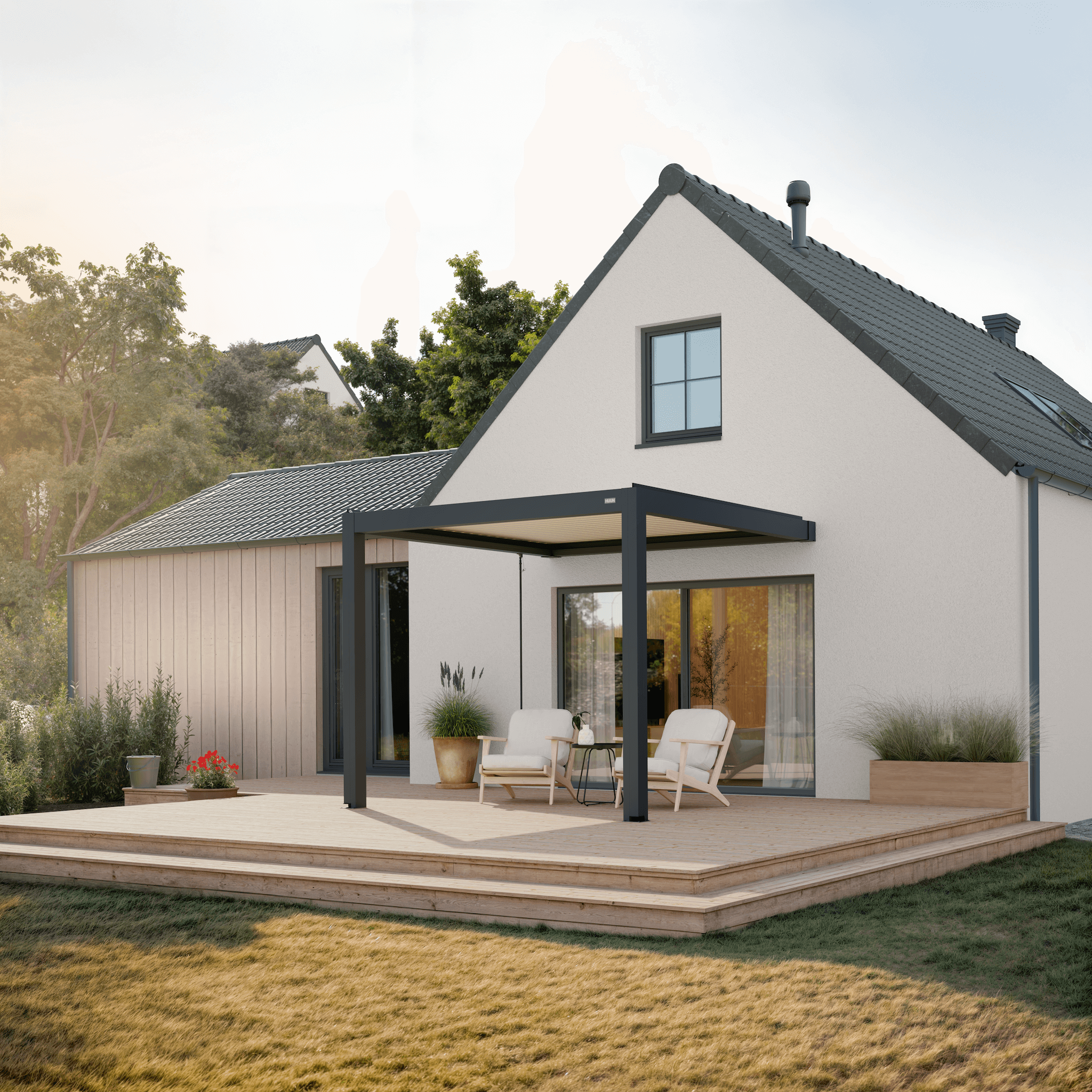

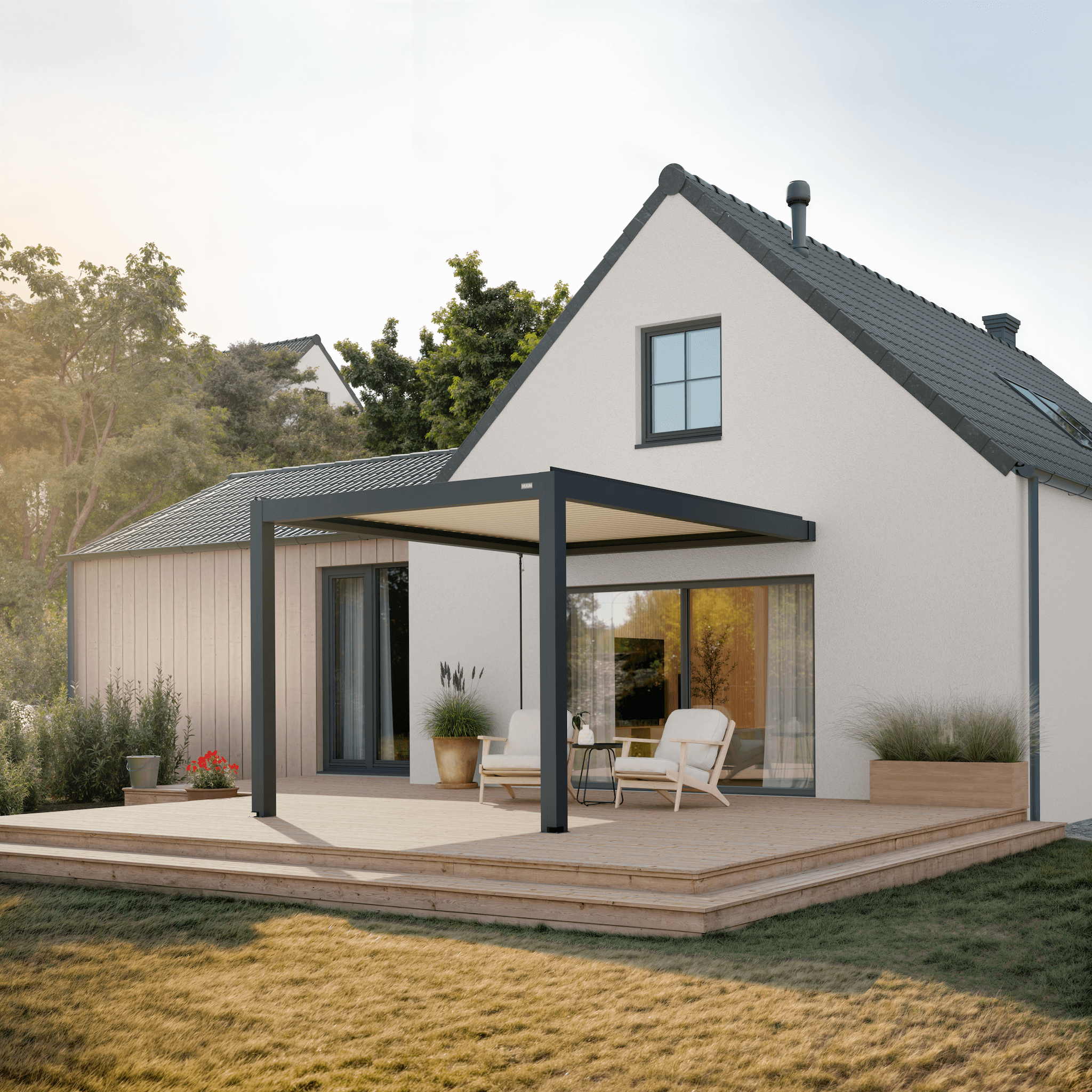

- Freestanding or wall-mounted. On wall-mounted installs the louvres run parallel to the wall. The price is the same in every finish and either mount.
- 10 years' warranty on the structure.
Choose it your way
Pick your size, finish and mount above and the price updates as you go. Add optional perimeter LED lighting around the frame, manual or solar side screens (chosen by side, size and colour), or the optional 3 kW heater. Not ready to order? Save your design and we'll call you back. No payment required.
Putting it up
Essential is designed for DIY, with clear instructions. Experienced DIYers typically assemble standard sizes in about 3 to 5 hours. No electrician is needed for the louvre drive; a 230V supply is only needed if you add a powered extra such as perimeter LED lighting or the heater. If you'd rather not assemble it yourself, we can introduce you to an independent installation partner, who quotes you separately (typically from £580 inc VAT). Nothing is added to your Sunnier order. How installation works.
At a glance
| Roof | Manual louvre roof with hand crank, opening up to about 115° |
|---|---|
| Sizes | 3 × 3, 3 × 4, 3 × 5 m |
| Height | 2,350 mm to the underside of the beam (fixed) |
| Posts | 135 × 135 mm |
| Base plates | 162 × 162 mm |
| Beam height | 150 mm |
| Louvre thickness | 1.5 mm |
| Material | Powder-coated aluminium, outdoor grade. Corrosion, UV and fade resistant |
| Finishes | Anthracite (RAL 7016); white (RAL 9010); anthracite frame with white blades |
| Lighting | Optional perimeter LED lighting around the frame, warm white 3000K, not dimmable |
| Rain | Waterproof when the louvres are fully closed. Integrated gutters drain through the posts |
| Wind rating | 110 km/h (depending on configuration) |
| Snow load | 65 to 120 kg/m² by size (depending on configuration) |
| Mount | Freestanding or wall-mounted (louvres parallel to the wall) |
| Power | None needed for the louvres. A 230V supply is needed if you add perimeter LED or a heater |
| Assembly | Self assembly, typically 3 to 5 hours for standard sizes with experienced DIYers; or an independent installer, quoted separately |
| Lead time | Made to order, around 4 to 6 weeks |
| Warranty | 10 years structure |
| Origin | Designed in Germany. Made in the EU |
Why it costs what it costs
Pergola Essential is from £6,459. Here is what that price pays for.
- The same solid aluminium build as Classic. 135 × 135 mm posts, 162 × 162 mm base plates and an outdoor-grade powder coat that resists rust, UV and fading.
- Rated for UK weather. A 110 km/h wind rating and snow loads of 65 to 120 kg/m² by size, depending on configuration.
- Nothing to wire for the roof. The hand crank needs no motor, no remote and no electrician.
- Made to order. Built after you order, in your size, finish and mount, and delivered in around 4 to 6 weeks.
- A shorter path from factory to garden. You buy direct from Sunnier, without a chain of agents, distributors and contractors in between.
- Clear online pricing. The price on this page is the price for your size, in every finish and either mount.
Want a remote-controlled roof? See Pergola Classic, from £7,550. Optional perimeter LED lighting around the frame is available on both models. Questions about your space? Ring us free on 0808 168 3131, book a free consultation, or read our guides to pergola sizes and wall-mounted pergolas.
Frequently Asked Questions
General Information
What is a manual louvre pergola?
A manual louvre pergola has a hand crank drive that opens and closes the roof louvres. You adjust shade and weather cover without a motor or remote.
When should I choose Essential instead of Classic?
Choose Essential if you want a lower price, do not need a remote or motor, and are happy with optional retrofit LED rather than built in lighting. Choose Classic for electric remote control, built in LED, more sizes and higher snow load ratings.
Is the pergola weatherproof?
Yes. Powder coated aluminium resists rust and UV, and the roof is waterproof when the louvres are fully closed. Rainwater drains through the integrated gutters and posts.
Can I use it all year round?
Yes. It gives summer shade and stands up to rain and moderate snow loads. See the wind and snow load table by size (65 to 120 kg/m² depending on size).
Do I need planning permission?
Rules vary by local authority and structure size. Many lightweight outdoor structures do not require permission, but check with your local planning office before installation.
Product Features
How does the hand crank work?
A mechanical crank turns the louvres smoothly up to about 115°. No electricity is required for the roof drive.
Does Essential include LED lighting?
No. Unlike Classic, LED is not built in as standard. You can add optional perimeter LED lighting on the product page.
What is it made from?
Powder coated aluminium. Durable, stable and needing little upkeep compared with timber that wants regular treatment.
Is it fully waterproof?
Yes, when the louvres are fully closed. Water is guided through the posts so the area underneath stays dry.
Any wall-mount restrictions?
Yes. On wall mounted installs, louvres run parallel to the wall only, not perpendicular.
Installation & Assembly
How complex is assembly?
Designed for DIY with clear instructions. Experienced DIYers typically assemble standard sizes in about 3–5 hours. No electrician is needed for the louvre drive.
What electrical supply is needed?
None for the louvres. A 230V supply is only needed if you add optional LED lighting or a heater.
What surfaces can it be mounted on?
Concrete, stone, timber decking and prepared foundations, subject to suitable fixings.
Warranty
How long is the warranty?
10 years on the aluminium structure.
What does the warranty cover?
Material and manufacturing defects. Damage from misuse or extreme weather outside normal use is excluded.
Can I return the pergola?
Yes, within your statutory cooling-off period for online purchases, provided the product is unassembled and undamaged. See our returns policy for full details.
General Information
How much does Pergola Essential cost?
£6,459 for 3 × 3 m, £6,833 for 3 × 4 m and £7,202 for 3 × 5 m. The price is the same in every finish and for freestanding or wall-mounted.
How long does delivery take?
Each Essential is made to order. Estimated delivery is around 4 to 6 weeks. Sunnier or our delivery partner will contact you to arrange a date, and it's delivered kerbside or to a safe unloading point near your address. See our delivery and installation page.
Which size should I choose?
Essential comes in 3 × 3, 3 × 4 and 3 × 5 m. Our pergola sizes guide shows the footprint, price and snow load of each size.
Can I see one before I order?
Yes. Book a free consultation to see a Sunnier pergola at our Stoke-on-Trent showroom, or ring us free on 0808 168 3131.
Product Features
Can I choose a custom height?
No. Essential has a fixed height of 2,350 mm to the underside of the beam. Custom heights from 2,100 to 2,800 mm are available on Pergola Classic.
Can I add side screens?
Yes. Add manual or solar side screens on this page, chosen by side, size and colour. Solar screens are remote controlled with no wiring.
Installation & Assembly
Who can install it for me?
Most people assemble it themselves: experienced DIYers typically take about 3 to 5 hours for standard sizes. If you'd rather not, we can introduce you to an independent installation partner. They quote you separately, typically from £580 inc VAT, and nothing is added to your Sunnier order.
| Feature | Pergola Classic | Pergola Essential |
|---|---|---|
| Roof | Electric louvre roof (remote control) | Manual hand crank louvres |
| Sizes | [3m x 4m] [3m x 5m] [3m x 6m] [3.5m x 4m] [3.5m x 5m] [3.5m x 6m] [4m x 4m] [4m x 5m] [4m x 6m] | [3m x 3m] [3m x 4m] [3m x 5m] |
| Integrated LED lighting | Yes. Warm white 3000K (dimming not available) | Optional retrofit (not included as standard) |
| Snow load | 160 to 320 kg/m² (by size) | 65 to 120 kg/m² (by size) |
| Frame dimensions | 13.5 cm x 13.5 cm | 13.5 cm x 13.5 cm |
| Wind force | 110 km/h | 110 km/h |
| Waterproof when closed | Yes | Yes |
| Mount options | Freestanding / Wall mounted | Freestanding / Wall mounted (louvres parallel to wall) |
| Assembly | Self assembly or Full assembly service | Self assembly or Full assembly service |
Pergola Essential technical specifications
Some specifications vary by size, colour, mount type and height. Confirm any critical dimensions with Sunnier before purchase if your project has tight tolerances.
Dimensions
- Pass-through height (standard)
- 2350 mm to underside of beam
- Height
- Standard 2350 mm to underside of beam (fixed, custom height not available)
- Beam / pelmet height
- 150 mm
- Post / frame section
- 135 × 135 mm
- Base plate size
- 162 × 162 mm
- Size options
- 3×3, 3×4, 3×5 m
- Custom sizing
- Standard size grid only
Material & finish
- Frame
- Powder coated aluminium
- Coating
- Powder coating (outdoor grade)
- Finish options
- White frame & blades (RAL 9010), Anthracite frame & blades (RAL 7016), Anthracite frame & white blades
- Louvre thickness
- 1.5 mm
- Corrosion resistant
- Yes
- UV / fade resistant
- Yes (powder coated aluminium)
- Maintenance
- Wash with water and mild soap
- Origin
- Made in the EU
Durability
- Wind rating*
- 110 km/h
- Snow load capacity*
- 65 to 120 kg/m² depending on size (see table)
- Rain protection
- Waterproof when louvres are fully closed
- Drainage
- Integrated gutters draining through posts
- Warranty
- 10 years structure
Roof system
- Roof type
- Manual louvre roof (hand crank)
- Roof drive system
- Mechanical crank, no motor
- Opening angle
- Up to 115°
- Louvres when closed
- Water-tight roof plane
- Drainage path
- Integrated slope to gutters, then through posts
- Electricity required for louvres
- No
Configuration
- Attachment type
- Freestanding or wall mounted
- Wall-mount orientation
- Louvres parallel to the wall only
- Side options
- Manual or solar side screens (optional)
- Heating
- Optional 3 kW heater accessory
- LED lighting
- Optional perimeter LED (not integrated as standard)
Lighting (optional)
- Lighting option
- Perimeter LED retrofit in frame / gutter channels
- Colour temperature
- 3000K warm white
- Dimmable
- No
- Power
- 24V via converter from 220V supply (when LED selected)
Controls
- Louvre control
- Manual hand crank
- Remote control
- Not required for louvres
- App / smart home
- Not included as standard
Installation
- Difficulty
- DIY-friendly with clear instructions
- Assembly time
- Typically 3–5 hours for standard sizes with experienced DIY (varies by size)
- Installation surfaces
- Concrete foundations, stone patio, timber decking (suitable fixings required)
- Recommended foundations
- Reinforced point foundations 60 × 60 × 80 cm (where used)
- Electrical required
- Only if optional LED or heater is fitted
- Professional assembly
- Optional introduction to independent installation partner (quoted separately)
- Mounting type
- Wall-mount or freestanding
Delivery
- Delivery
- Freight delivery. See Delivery Policy for kerbside and access details
- Lead time
- Made to order, typically around 4 to 6 weeks
Wind & snow load by size*
| Size | Wind load | Snow load |
|---|---|---|
| 3m x 3m | 110 km/h | 120 kg/m2 |
| 3m x 4m | 110 km/h | 90 kg/m2 |
| 3m x 5m | 110 km/h | 65 kg/m2 |
*Wind and snow figures are configuration-dependent. In heavy snowfall, tilt louvres toward vertical to reduce roof load.
Structure. 10 years on the aluminium structure.
The warranty covers material and manufacturing defects. It does not cover damage from improper use or weather beyond normal conditions.
For returns and transport damage, contact Sunnier customer support. Statutory UK consumer rights apply.
Engineered for all seasons
Wind Resistance and Snow Load
The Pergola Essential is built for outdoor use through every season. Its aluminium frame and manual louvred roof are rated for wind speeds of up to 110 km/h, including storm force conditions, and carry a snow load of 65 to 120 kg/m² depending on the size.
Closed, the louvres form a waterproof roof that drains rainwater through the integrated gutters and posts. No electricity is required for the louvre drive.
65 to 120 kg/m²
Snow load, depending on size
In heavy snowfall we recommend tilting the louvres to the vertical position to keep load off the roof.
