110 km/h
Wind resistance
Save 20%
Regular price
Sale price
£7,550.00
Regular price
£9,437.50
Sale
Waterproof when closed · Quiet electric drive · Made to order
Price updates as you choose size and height
Add side enclosures
Tap a side to choose an enclosure. Pick type and colour in the popup.
Limited monthly offer
Perimeter LED lighting FREE
Usually £0.00 — yours free until the end of this month
00
Days
00
Hrs
00
Min
00
Sec
Optional extras
Made to order
Built after you order · Estimated delivery in 4–6 weeks
- 5-year structure · 2-year motor warranty
- UK support · statutory consumer rights apply
Designed for real outdoor living

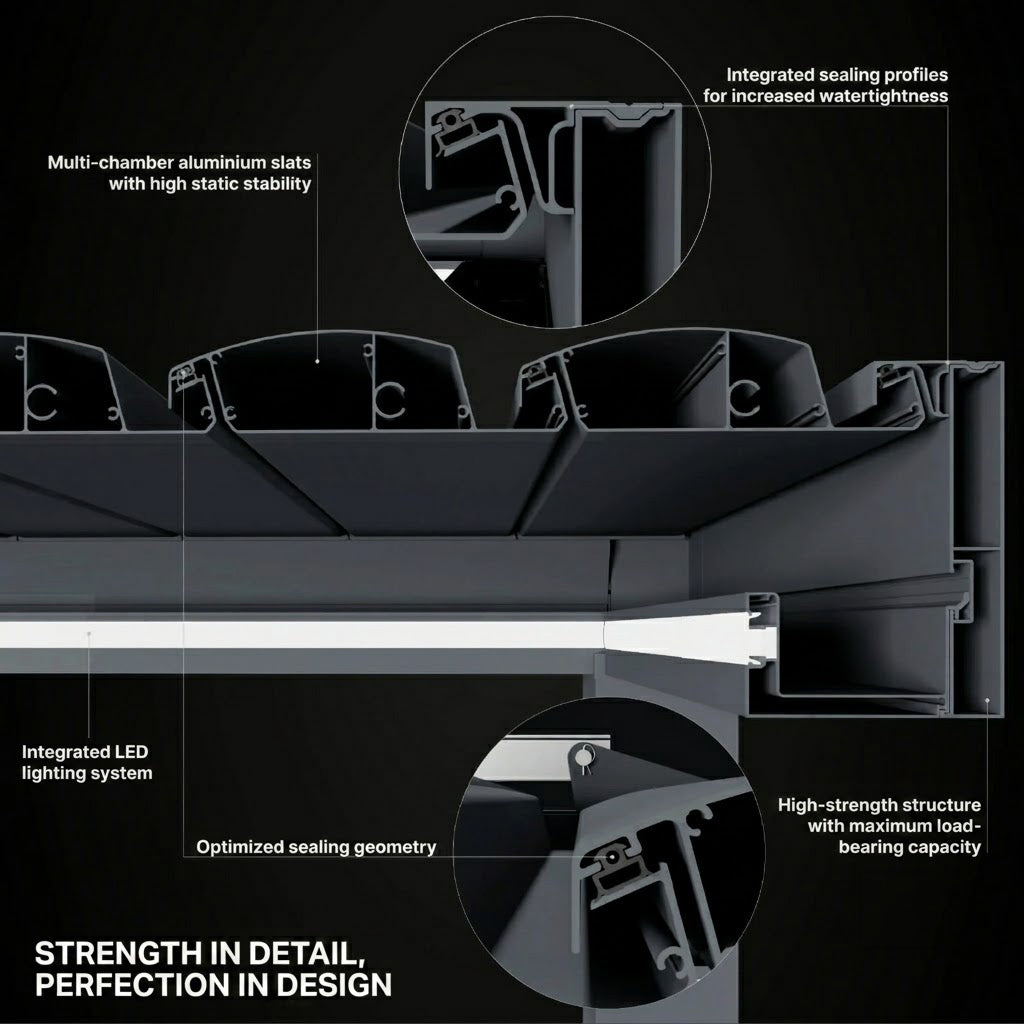

Electric louvres, integrated drainage and durable aluminium — built for year-round use, with options for mounting, colour and assembly.

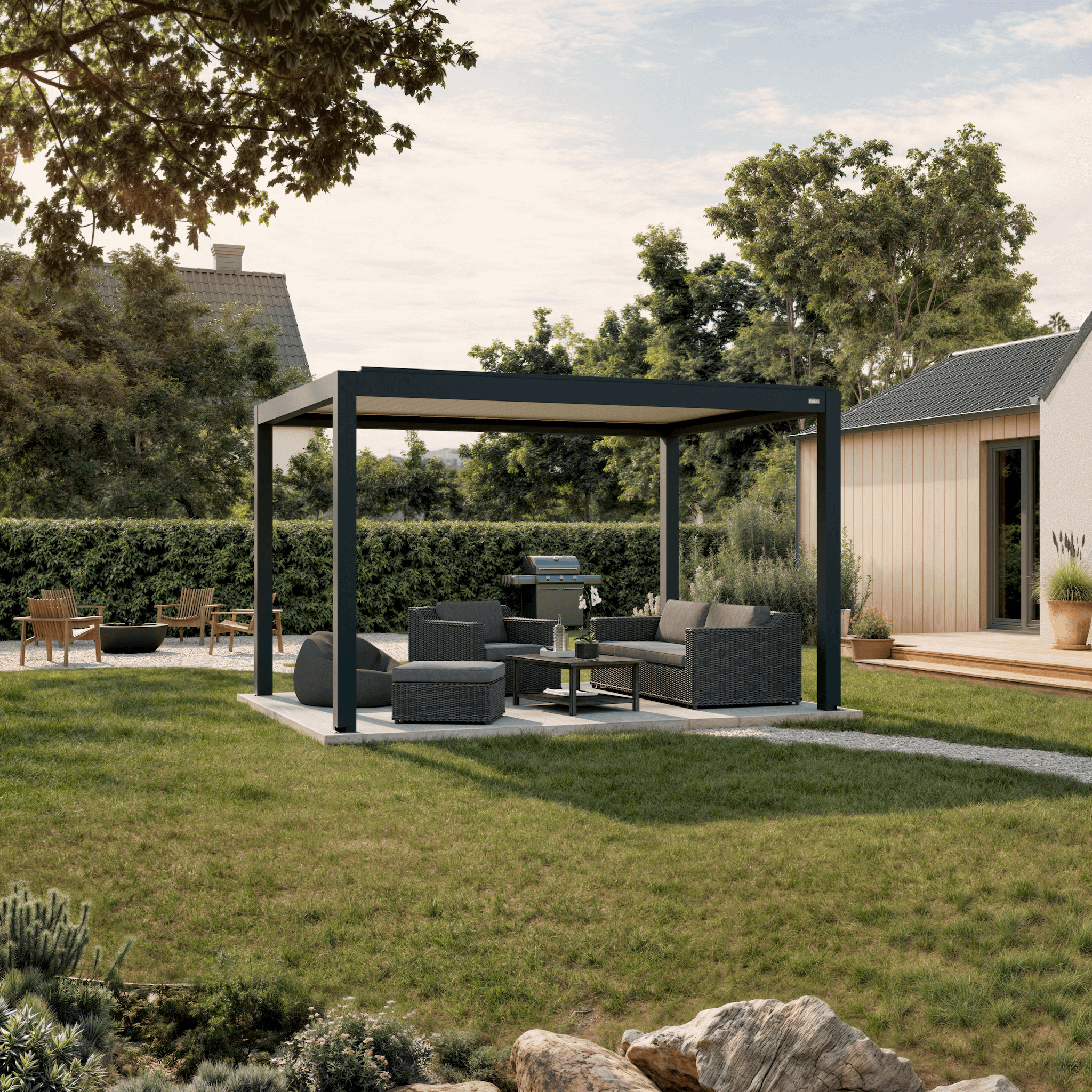

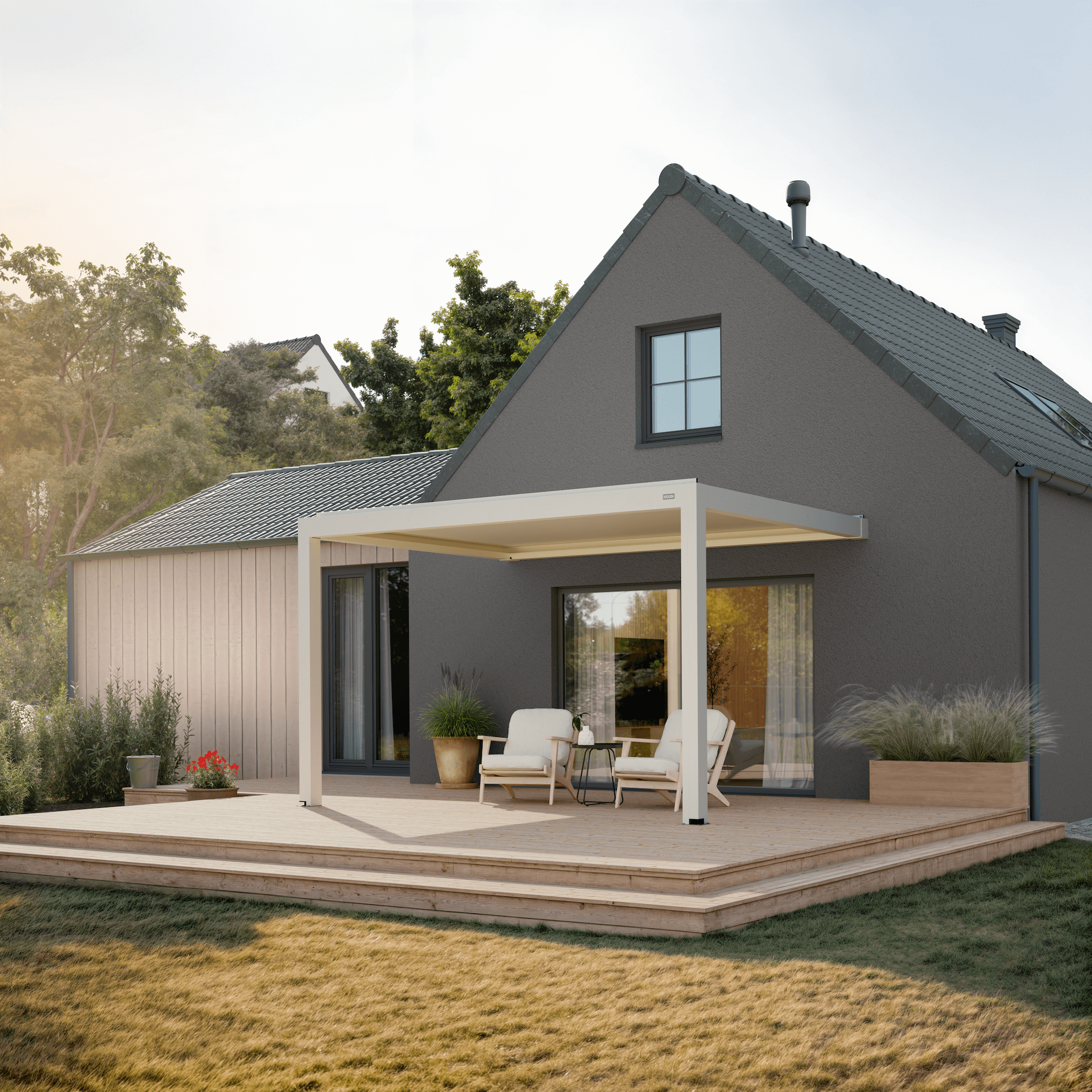

The Pergola Classic is an electric aluminium louvre pergola with integrated LED lighting — built for year-round outdoor living.
- 100% waterproof when closed, with integrated drainage through the posts
- Wind-stable aluminium construction for demanding weather
- Maintenance-free powder-coated aluminium
- Quiet electric drive with remote control
- Warm-white integrated LED (3000K; dimming not available)
- Made in the EU
Choose your size, colour and mount type. Select height and assembly options at checkout configuration on the product page.
Frequently Asked Questions
General Information
What is a motorised pergola?
A motorised pergola is a modern outdoor canopy with an electric drive that opens and closes the louvres by remote control. It gives flexible protection from sun, rain and wind.
Where can the pergola be used?
It is ideal for terraces, gardens, balconies and hospitality outdoor spaces. The aluminium structure is designed for UK weather conditions.
How does it differ from a manual louvre roof?
A motorised system adjusts louvre angles at the touch of a button, so you can respond instantly to changing light and weather without physical effort.
Is the pergola weatherproof?
Yes. High-quality aluminium is rust-resistant, UV-resistant and waterproof when the louvres are fully closed. Rainwater drains through the integrated system.
Can I use it all year round?
Yes. It provides summer shade and stands up to rain and moderate snow loads in winter — see the wind and snow load table by size.
Do I need planning permission?
Rules vary by local authority and structure size. Many lightweight outdoor structures do not require permission, but we recommend checking with your local planning office before installation.
Product Features
What is it made from?
Powder-coated aluminium — durable, stable and low-maintenance compared with timber that needs regular treatment.
What motors are used?
Quiet electric motors developed for pergola systems, for reliable and even louvre movement.
Can it be controlled by remote?
Yes. Control is via a wireless remote control.
How loud is the motor?
The drive is optimised for quiet operation so it does not disturb the atmosphere on your terrace.
Is it fully waterproof?
Yes, when the louvres are fully closed. Water is guided invisibly through the posts so the area underneath stays dry.
Installation & Assembly
How complex is assembly?
The system is designed for DIY assembly with clear instructions and pre-assembled components. Typically three people can assemble it in a day. Full professional assembly is also available as an option.
What electrical supply is needed?
A standard 230V supply for the motor. We recommend a qualified electrician for wiring.
What surfaces can it be mounted on?
Concrete, stone, timber decking and prepared foundations, subject to suitable fixings.
Warranty
How long is the warranty?
5 years on the aluminium structure and 2 years on the motor unit and electronic components.
What does the warranty cover?
Material and manufacturing defects. Damage from misuse or extreme weather outside normal use is excluded.
Can I return the pergola?
Yes, within your statutory cooling-off period for online purchases, provided the product is unassembled and undamaged. See our returns policy for full details.
What if a part arrives damaged?
Contact customer support with a photo of the damage and we will arrange a free replacement of the affected parts.
| Feature | Pergola Classic | Pergola Essential |
|---|---|---|
| Roof | Electric louvre roof (remote control) | Manual hand-crank louvres |
| Sizes | [3m x 4m] [3m x 5m] [3m x 6m] [4m x 4m] [4m x 5m] [4m x 6m] | [3m x 3m] [3m x 4m] [3m x 5m] |
| Integrated LED lighting | Yes — warm white 3000K (dimming not available) | Optional retrofit (not included as standard) |
| Snow load | 160 – 320 kg/m² (by size) | 65 – 120 kg/m² (by size) |
| Frame dimensions | 13.5 cm x 13.5 cm | 13.5 cm x 13.5 cm |
| Wind force | 110 km/h | 110 km/h |
| Waterproof when closed | Yes | Yes |
| Wall-mount louvre direction | Flexible (two sides) | Parallel to the wall only |
| Mount options | Freestanding / Wall-mounted | Freestanding / Wall-mounted |
| Assembly | Self assembly or Full assembly service | Self assembly or Full assembly service |
| Electricity for louvres | Required (230V) | Not required |
Pergola Classic technical specifications
Some specifications vary by size, colour, mount type and height. Confirm any critical dimensions with Sunnier before purchase if your project has tight tolerances.
Dimensions
- Pass-through height (standard)
- 2350 mm to underside of beam
- Height options
- Standard 2350 mm, or custom 2100–2800 mm
- Beam / pelmet height
- 150 mm
- Post / frame section
- 135 × 135 mm
- Base plate size
- 162 × 162 mm
- Max unsupported span
- Up to 5–6 m depending on chosen size
- Size options
- 3×4, 3×5, 3×6, 4×4, 4×5, 4×6 m
- Custom sizing
- Standard size grid; custom height available
Material & finish
- Frame
- Powder-coated aluminium
- Coating
- Powder coating (outdoor grade)
- Finish options
- White frame & blades (RAL 9010), Anthracite frame & blades (RAL 7016), Anthracite frame & white blades
- Corrosion resistant
- Yes
- UV / fade resistant
- Yes (powder-coated aluminium)
- Moisture resistant
- Yes
- Maintenance
- Wash with water and mild soap
- Origin
- Made in the EU
Durability
- Wind rating*
- 110 km/h
- Snow load capacity*
- 160–320 kg/m² depending on size (see table)
- Rain protection
- Waterproof when louvres are fully closed
- Drainage
- Integrated gutters draining through posts
- Warranty
- 5 years structure · 2 years motor & electronics
Roof system
- Roof type
- Electric louvre roof
- Roof drive system
- Electric motor with remote control
- Louvres when closed
- Water-tight roof plane
- Drainage path
- Integrated slope to gutters, then through posts
- Motor cable length
- Approx. 3 m (routed inside post)
- Electricity required
- Yes — 220–230V supply for motor (and LED converter)
Configuration
- Attachment type
- Freestanding or wall-mounted
- Side options
- Manual or solar side screens (optional)
- Heating
- Optional 3 kW heater accessory
- LED lighting
- Integrated perimeter LED (optional / promotional inclusion)
Lighting
- Lighting option
- Perimeter LED in frame / gutter channels
- Colour temperature
- 3000K warm white
- Dimmable
- No
- Light colour options
- Warm white
- Power
- 24V via converter from 220V supply
Controls
- Remote control
- Yes — louvre drive
- App / smart home
- Not included as standard
Installation
- Difficulty
- DIY-friendly with clear instructions
- Assembly time
- Typically 1 day with 2–3 people (varies by size and experience)
- Installation surfaces
- Concrete foundations, stone patio, timber decking (suitable fixings required)
- Recommended foundations
- Reinforced point foundations 60 × 60 × 80 cm (where used)
- Anchoring hardware
- Concrete anchor screws included in kit (e.g. 7.5 × 100 mm); confirm suitability for your surface
- Electrical required
- Yes — qualified electrician recommended for 220–230V connection
- Professional assembly
- Optional introduction to independent installation partner (quoted separately)
- Useful tools
- Ladder, tape measure, level, power drill, Allen keys (4 & 5 supplied), silicone, appropriate mounting bolts
- Mounting type
- Wall-mount or freestanding
Delivery
- Delivery
- Freight delivery — see Delivery Policy for kerbside / access details
- Lead time
- Made to order, typically around 4–6 weeks
Wind & snow load by size*
| Size | Wind load | Snow load |
|---|---|---|
| 3m x 4m | 110 km/h | 320 kg/m2 |
| 3m x 5m | 110 km/h | 320 kg/m2 |
| 3m x 6m | 110 km/h | 320 kg/m2 |
| 4m x 4m | 110 km/h | 160 kg/m2 |
| 4m x 5m | 110 km/h | 160 kg/m2 |
| 4m x 6m | 110 km/h | 160 kg/m2 |
*Wind and snow figures are configuration-dependent. In heavy snowfall, tilt louvres toward vertical to reduce roof load.
Footprint reference (freestanding)
From the EQUA installation catalogue measuring template. Useful for setting out posts and foundations. Values in mm.
| Nominal size | Width base plate–base plate (x) | Width post outer–outer (y) | Width inner–inner (z) | Projection base plate–base plate (a) | Projection post outer–outer (b) | Projection inner–inner (c) |
|---|---|---|---|---|---|---|
| 3 × 4 m | 3153 | 3100 | 2830 | 4078 | 4025 | 3755 |
| 3 × 5 m | 3153 | 3100 | 2830 | 5098 | 5045 | 4775 |
| 4 × 4 m | 4078 | 4025 | 3754 | 4078 | 4025 | 3754 |
| 4 × 5 m | 4078 | 4025 | 3754 | 5098 | 5045 | 4775 |
Foundation centre-to-centre guide from the same catalogue: 3 m side ≈ 2965 mm; 4 m projection ≈ 3890 mm; 5 m projection ≈ 4910 mm. Recommended point foundations 600 × 600 × 800 mm where used. 3×6 and 4×6 footprints follow the same product family — ask us if you need exact set-out for those sizes.
Structure: 5 years on the aluminium structure.
Motor & electronics: 2 years on the motor unit and electronic components.
The warranty covers material and manufacturing defects. It does not cover damage from improper use or extreme weather beyond normal conditions.
For returns and transport damage, contact Sunnier customer support. Statutory UK consumer rights apply.
Motor & electronics: 2 years on the motor unit and electronic components.
The warranty covers material and manufacturing defects. It does not cover damage from improper use or extreme weather beyond normal conditions.
For returns and transport damage, contact Sunnier customer support. Statutory UK consumer rights apply.
Engineered for all seasons
Wind Resistance & Snow Load
The Pergola Classic is engineered for year-round outdoor use. Its aluminium frame and louvred roof are rated for wind speeds of up to 110 km/h — storm-force conditions — and carry a snow load of 160 – 320 kg/m² depending on the size.
Closed, the louvres form a waterproof roof that drains rainwater through the integrated gutters and posts.
160 – 320 kg/m²
Snow load, depending on size
In heavy snowfall we recommend tilting the louvres to the vertical position to minimise the load on the roof.
